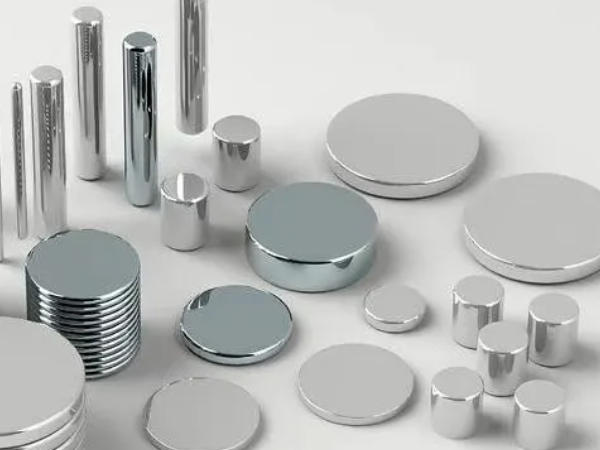

The growth of sectors such as new energy vehicles, wind power, robotics, energy-efficient home appliances, and industrial motors continues to drive up the demand for rare-earth materials used in magnets. Data from the International Energy Agency (IEA) indicates that demand for these rare-earth elements has doubled since 2015 and is projected to grow by approximately another third by 2030 under current policy conditions.

Against a backdrop of rising global demand, concentrated resource distribution, and fluctuating raw material prices and supply-demand dynamics, permanent magnet enterprises must continuously strengthen their capabilities in raw material security, technological innovation, and supply chain management.

I. What are the impacts of fluctuations in raw material supply?

First, changes in the supply-demand balance for raw materials can lead to price volatility. Concerns regarding supply stability may prompt enterprises to increase purchasing or inventory levels, thereby further amplifying short-term price fluctuations.

Second, raw material delivery lead times may become unstable. For high-coercivity magnets requiring heavy rare earths like dysprosium and terbium, supply delays directly impact batching, smelting, and customer delivery schedules.

Third, customers may raise their requirements regarding material traceability and supply chain compliance. Clients in the automotive, wind power, and high-end industrial sectors are increasingly focused not only on magnet performance but also on raw material sourcing, environmental responsibility, export compliance, and the ability to ensure a continuous supply.

II. Functions of Various Mitigation Strategies

III. Establishing a Diversified Raw Material Supply System

Permanent magnet manufacturers should avoid relying entirely on a single supplier for critical raw materials. For key rare-earth metals, alloys, and other essential auxiliary materials, a system comprising both primary and backup suppliers should be established.

However, supply diversification is not merely about increasing the number of suppliers. Raw materials from different sources may vary in oxygen, carbon, and trace impurity levels; even if the nominal grade is identical, these differences can affect sintering, grain boundary structure, and final magnetic properties.

Therefore, before switching raw material sources, it is essential to conduct compositional analysis, small-batch smelting, magnetic property testing, and reliability verification; direct substitution without process validation is not advisable.

IV. Reducing Heavy Rare-Earth Usage through Technology

Traditional high-temperature NdFeB magnets often achieve higher intrinsic coercivity by incorporating dysprosium or terbium into the alloy matrix; however, this increases heavy rare-earth consumption and may slightly reduce remanence.

Grain boundary diffusion technology selectively introduces heavy rare-earth elements into the magnet’s surface and grain boundary regions, creating a protective structure where demagnetization resistance is most needed. This approach allows for meeting coercivity requirements while reducing the total amount of heavy rare-earth elements added.

Additionally, optimizing grain size, rare-earth-rich phase distribution, sintering protocols, and heat treatment processes can also improve coercivity. However, these methods rely on consistent control of powder characteristics, oxygen content, and microstructure.

V. Avoiding Magnet Over-engineering

When selecting products, customers sometimes opt for grades with very high magnetic properties simply to gain a sense of security. However, the highest grade is not necessarily the most suitable solution. Material selection should be determined based on actual operating temperatures, reverse magnetic fields, permeability, corrosive environments, and permissible losses. Optimizing magnetic circuits, air gaps, and magnet dimensions through finite element analysis can sometimes reduce magnet volume or lower grade requirements while maintaining system performance.

For magnetic assemblies, effective magnetic flux utilization can also be improved by optimizing magnetically permeable components, magnetization directions, and segmentation methods. Compared to simply upgrading magnet grades, system-level optimization is generally more conducive to controlling resource consumption and costs.

VI. Developing Alternative Magnetic Materials

Different applications have varying requirements for magnetic properties. While high-power-density motors may require sintered NdFeB, ferrites, injection-molded magnets, or other materials can be used for certain home appliances, loudspeakers, sensors, and auxiliary motors.

Samarium-Iron-Nitrogen (SmFeN) shows potential in the fields of injection-molded and bonded magnets; Samarium-Cobalt (SmCo) is suitable for applications requiring high-temperature resistance and corrosion resistance; ferrites are low-cost and relatively abundant, making them suitable for products where installation space permits and magnetic performance requirements are moderate.

Material substitution must be validated regarding magnetic circuits, temperature, and service life; selection should not be based solely on unit price.

VII. Increasing the Recycling Rate of Used Magnets

Scrap, grinding swarf, and substandard products are generated during permanent magnet production, while discarded motors, wind turbines, and electronic equipment also contain recyclable magnets.

Production waste with clear composition and low contamination is suitable for direct regeneration, whereas mixed, oxidized, or heavily contaminated waste can be processed via hydrometallurgy to recover rare-earth elements.

Currently, raw materials for rare-earth recovery primarily come from manufacturing losses; the recovery of permanent magnets from end-of-life products is constrained by collection rates and economic viability.

Future efforts should focus on magnet identification, design for disassembly, and material traceability to ensure that magnets can be accurately identified and centrally recycled after products reach the end of their service life.

VIII. Upgrading from Procurement Risk Management to Supply Chain Management

Enhancing the security of raw material supplies cannot rely solely on inventory management. Enterprises also need to establish mechanisms for raw material price monitoring, supply risk classification, alternative material validation, customer demand forecasting, and recycling.

Our business operations encompass magnetic materials, magnetic assemblies, magnetic material processing equipment, rare-earth resource partnerships, as well as motor and scrap magnet recycling. This business structure—spanning raw materials, manufacturing, applications, and recycling—facilitates the coordination of information and resources across different stages of the value chain.

For the permanent magnet industry, a more robust approach involves simultaneously pursuing supply diversification, heavy rare-earth reduction, magnetic circuit optimization, alternative materials, and closed-loop recycling. Only by adopting such a combined strategy can enterprises enhance their operational resilience in the face of fluctuations in raw material supply and demand and changes in the external environment, thereby ensuring stable production and customer delivery.

The post How Can The Supply Chain Resilience Of The Rare-Earth Permanent Magnet Industry Be Enhanced? appeared first on JLMAG INNOVATION CO.,LTD..

Compared with manual dispensing, a multi-line machine can improve the consistency of adhesive position, volume, line width, and production cycle time. However, its actual performance depends on much more than movement speed. Adhesive properties, feeding methods, mechanical rigidity, motion control, software, and commissioning procedures all affect the final dispensing result.

1. Requirement Analysis and Process Definition

Before the machine is designed, the manufacturer must define the dimensions and material of the workpiece, number of glue lines, path geometry, production cycle, positioning tolerance, and required adhesive quantity.

The characteristics of the adhesive must also be confirmed, including:

• One-component or two-component formulation;
• Viscosity;
• Mixing ratio;
• Pot life;
• Curing method;
• Curing temperature;
• Sensitivity to moisture or air;
• Recommended storage conditions;
• Required cleaning method.

For two-component adhesives, the resin and hardener must be accurately metered and mixed thoroughly. An incorrect ratio or incomplete mixing can cause local under-curing, reduced bonding strength, abnormal curing time, or brittle adhesive layers.

If the workpiece is a magnetic assembly, the magnetic attraction must also be considered. Strong magnets may influence steel fixtures, tools, sensors, and dispensing heads. The coating, surface cleanliness, surface energy, and roughness of the magnet can also affect adhesive wetting and bonding strength.

2. Overall Equipment Design

After defining the process requirements, the manufacturer develops the overall equipment structure. A typical multi-line dispensing machine includes:

• Machine frame and worktable;
• X-, Y-, and Z-axis motion modules;
• Multi-line dispensing head;
• Adhesive storage and feeding system;
• Metering and mixing system;
• Workpiece positioning fixture;
• Vision inspection or positioning system;
• Electrical control system;
• Human-machine interface;
• Safety guards and interlocks;
• Cleaning and waste-adhesive collection devices.

Linear guides, ball screws, servo motors, or other drive systems should be selected according to travel distance, movement speed, load, and positioning accuracy.

Insufficient frame rigidity can produce vibration during high-speed movement. This may cause deviations in line position, unstable line width, or inconsistent spacing between multiple adhesive paths.

The multi-line dispensing head must also maintain balanced flow resistance across every outlet. If the internal channels have different lengths or pressure losses, identical controller settings may still produce different adhesive volumes.

3. Manufacturing Critical Components

Once the design drawings are approved, production begins for the frame, mounting plates, fixtures, dispensing heads, and transmission components.

Welding may introduce residual stress into the machine frame. Depending on the required accuracy, stress relief or another stabilization process may be necessary before precision machining.

The mounting surfaces for linear guides and motion modules must have suitable flatness, parallelism, and perpendicularity. Errors in these surfaces may increase running resistance, reduce positioning accuracy, or cause abnormal wear over time.

Pipes, seals, valves, and adhesive-contacting components must be chemically compatible with the selected adhesive. Some sealing materials may swell, harden, dissolve, or corrode after exposure to particular solvents, resins, or hardeners.

Workpiece fixtures must provide repeatable positioning while leaving sufficient space for loading, unloading, inspection, and cleaning. For production lines handling several product models, replaceable locating blocks or modular fixtures can reduce changeover time.

4. Mechanical and Electrical Assembly

Mechanical assembly normally begins with leveling and stabilizing the machine frame. Motion modules, servo motors, transmission components, worktables, adhesive systems, and protective structures are then installed in sequence.

Before linear guides are installed, the reference surfaces must be cleaned carefully. Fasteners should be tightened according to the specified sequence and torque requirements. Installation errors may cause increased friction, reduced positioning accuracy, and shortened component life.

The electrical system typically includes:

• Electrical cabinet;
• PLC or industrial controller;
• Servo drives;
• Sensors;
• Vision system;
• Emergency-stop circuit;
• Safety door interlocks;
• Human-machine interface;
• Communication modules.

Electrical cables and adhesive hoses should be routed separately where appropriate. Their movement paths must prevent interference, excessive bending, twisting, and fatigue during repeated machine operation.

Safety circuits require independent verification. If a protective door is opened, air pressure falls below the set value, or an emergency stop is activated, the machine should stop hazardous movements according to the predefined safety logic.

5. Control Software and Dispensing Path Development

The control program must coordinate movement speed, acceleration, adhesive opening time, closing time, pressure, flow rate, and dispensing delay.

If the dispensing valve opens too early, a blob may form at the beginning of the line. If it opens too late, the starting section may contain insufficient adhesive.

When the machine slows down at a corner, the adhesive flow must be adjusted accordingly. Otherwise, the adhesive layer may become thicker at the corner than along straight sections.

For complex workpieces or products with positional variation, a vision system can identify reference features and compensate for deviations in the dispensing path.

The control system should store the product model, adhesive quantity, movement path, and parameter version. Proper version management prevents the wrong program from being used after a product changeover.

6. Machine Commissioning and Process Validation

After assembly, commissioning should proceed in the sequence of no-load operation, adhesive feeding, single-line testing, multi-line testing, sample production, and continuous production.

Adhesive line quality can be assessed by measuring width, height, cross-sectional area, or applied weight. A vision system may also be used to identify discontinuity, overflow, incorrect position, or inconsistent line width.

For critical magnetic assemblies, further validation may include pull-off testing, shear testing, thermal cycling, damp-heat aging, vibration testing, or centrifugal-load testing.

7. Equipment Acceptance and Delivery

Equipment acceptance should not rely only on a short demonstration. The machine should be tested with the customer’s specified adhesive and actual workpieces under the target cycle time.

The acceptance process should record:

• Positioning accuracy;
• Adhesive volume consistency;
• Mixing ratio;
• Product yield;
• Cycle time;
• Unplanned stops;
• Cleaning time;
• Changeover time.

Delivery documents generally include mechanical drawings, electrical drawings, spare-parts lists, operating instructions, maintenance schedules, program backups, and process parameters.

Operators should be trained in adhesive replacement, hose cleaning, nozzle replacement, calibration, alarm handling, and routine maintenance.

JLMAG Innovation supplies magnetic materials, magnetic assemblies, and magnet-related production equipment. Its multi-line glue dispensing machine can support magnetic component and precision-part production requiring consistent adhesive paths.

The purpose of a multi-line system is not simply to increase the number of dispensing channels. Its real value lies in integrating mechanical design, motion control, adhesive behavior, process monitoring, and quality verification into one stable production process.

The post Multi-Line Glue Dispensing Machine Production Process: From Design and Manufacturing to Assembly and Commissioning appeared first on JLMAG INNOVATION CO.,LTD..

Permanent magnets require relatively high coercivity to maintain magnetization after the external magnetic field is removed. Amorphous and nanocrystalline soft magnetic materials, by contrast, are usually designed to provide low coercivity, high permeability, and low power loss under alternating magnetic fields.

These materials are widely used in high-frequency transformers, common-mode chokes, current sensors, reactors, inverters, and power electronic systems for electric vehicles. Their magnetic properties are not fixed. Composition, cooling rate, heat treatment, mechanical stress, frequency, magnetic flux density, and operating temperature can all produce significant changes in performance.

1. Structural Differences Between Amorphous and Nanocrystalline Materials

Atoms in conventional crystalline metals are arranged in an ordered structure and form grains with clear grain boundaries. Amorphous alloys are produced through rapid solidification, which prevents conventional crystal nucleation and growth. The atoms therefore remain in a long-range disordered state.

Because amorphous alloys do not contain conventional grains and grain boundaries, the local obstacles to magnetic domain-wall movement can be reduced or controlled. This structural characteristic makes it possible to achieve low coercivity and useful soft magnetic performance.

Nanocrystalline materials are commonly produced by first preparing an amorphous ribbon and then applying controlled annealing. During annealing, very small and uniformly distributed crystalline grains precipitate from the amorphous matrix.

When the grain size remains below the characteristic exchange-interaction length, the magnetocrystalline anisotropy of individual grains can be averaged through exchange coupling. As a result, the material can achieve low coercivity and high permeability.

JLMAG Innovation supplies Fe-based amorphous and Fe-based nanocrystalline ribbons. For example, the reference properties of 1K107B nanocrystalline ribbon include a saturation magnetic induction of approximately 1.2 T, coercivity below 20 A/m, and a thickness range of 12–27 μm. The reference saturation magnetic induction of the Fe-based amorphous ribbon is approximately 1.56 T. Actual performance should always be confirmed according to the specific grade, magnetic core structure, and test conditions.

2. Which Factors Cause Magnetic Properties to Change?

2.1 Alloy Composition

Iron content, metalloid elements, and small additions of elements such as copper and niobium affect glass-forming ability, crystallization temperature, and nanocrystal precipitation.

If the composition deviates from the designed range, the ribbon may experience localized crystallization, increased brittleness, or unstable magnetic properties.

Increasing the iron content can help produce a higher saturation magnetic induction. However, it may also make it more difficult to form a completely amorphous structure. Alloy design must therefore balance saturation induction, amorphous-forming ability, thermal stability, and soft magnetic performance.

2.2 Rapid Solidification Quality

Amorphous ribbon is commonly manufactured by rapid solidification. Melt temperature, nozzle gap, cooling-wheel speed, pressure, and ribbon tension all affect thickness, surface quality, and the degree of amorphization.

If the cooling rate is insufficient, unwanted crystalline phases may form. These phases can act as pinning sites for magnetic domain walls, increasing coercivity and magnetic loss.

Ribbon thickness must also remain consistent. Large thickness variations may result in uneven magnetic flux distribution, inconsistent core filling factors, and variations in power loss after the ribbon is wound into a core.

2.3 Heat Treatment Conditions

The performance of nanocrystalline alloys depends strongly on annealing temperature, holding time, heating and cooling rates, and protective atmosphere.

If the annealing temperature is too low, the required nanocrystalline phase may not precipitate sufficiently. If the temperature is too high or the holding time is too long, excessive grain growth may occur, resulting in increased coercivity and core loss.

Stress-relief annealing is also important for amorphous materials. It can reduce residual stresses introduced during ribbon casting, slitting, winding, or forming.

Annealing under a controlled magnetic field can induce magnetic anisotropy in a selected direction. This process can be used to adjust the hysteresis loop, permeability, and DC bias characteristics of the finished magnetic core.

2.4 Processing and Assembly Stress

Ribbon winding, stamping, cutting, clamping, resin curing, and housing assembly can all introduce mechanical stress.

Because of magnetoelastic effects, residual stress may restrict domain-wall movement, increasing coercivity and reducing permeability. A magnetic core that performs well before packaging may therefore show increased loss after being tightly clamped or encapsulated in a high-shrinkage resin.

Differences in thermal expansion between the magnetic core, adhesive, and housing can generate additional stress during temperature changes. Mechanical fixation should therefore provide sufficient structural strength without placing excessive pressure on the core.

2.5 Frequency and Magnetic Flux Density

Soft magnetic material loss generally consists of hysteresis loss, eddy-current loss, and excess loss. Total loss usually increases as operating frequency or magnetic flux density rises.

The small thickness and relatively high electrical resistivity of amorphous and nanocrystalline ribbons help suppress eddy currents. However, this does not mean the materials will maintain low loss under every operating condition.

Magnetostriction, domain-wall movement, waveform, temperature, and core geometry can all affect actual loss. A material measured at 20 kHz and 0.2 T cannot be compared directly with another material tested at 100 kHz and 0.05 T.

3. Comparison Between Amorphous and Nanocrystalline Materials

4. How Can Magnetic Performance Be Optimized?

The first requirement is to stabilize raw material composition and the rapid-solidification process. Ribbon thickness, surface defects, amorphization, and compositional uniformity should be monitored carefully.

The second requirement is to develop a suitable annealing curve for each material grade. Annealing temperature and holding time should be established through testing rather than simply selecting the highest temperature that the alloy can tolerate.

For magnetic cores requiring a particular hysteresis-loop shape, longitudinal, transverse, or other controlled magnetic-field annealing methods may be considered.

Encapsulation materials should have limited curing shrinkage and suitable thermal expansion characteristics. The clamping force should also be controlled to prevent assembly stress from degrading permeability and increasing core loss.

Finished-product testing should include:

• Coercivity;
• Initial and effective permeability;
• Saturation magnetic induction;
• Core loss at different frequencies;
• Temperature rise;
• Insulation performance;
• DC bias characteristics;
• Thermal stability.

Frequency, waveform, magnetic flux density, and temperature should be clearly stated in every test report. Comparing core-loss values without consistent test conditions can lead to incorrect material selection.

JLMAG Innovation offers Fe-based amorphous and nanocrystalline ribbons, as well as sintered NdFeB, SmFeN, SmCo, ferrite, and magnetic assemblies. Before selecting a material, engineers should first determine whether the product must maintain a stable permanent magnetic field or respond rapidly to an alternating magnetic field with low energy loss. This distinction determines whether a permanent magnet or soft magnetic material is the appropriate solution.

The post Magnetic Property Changes and Optimization Methods for Amorphous and Nanocrystalline Magnetic Materials appeared first on JLMAG INNOVATION CO.,LTD..

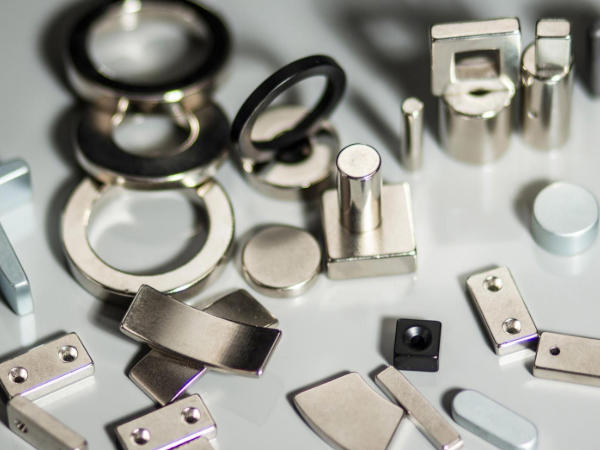

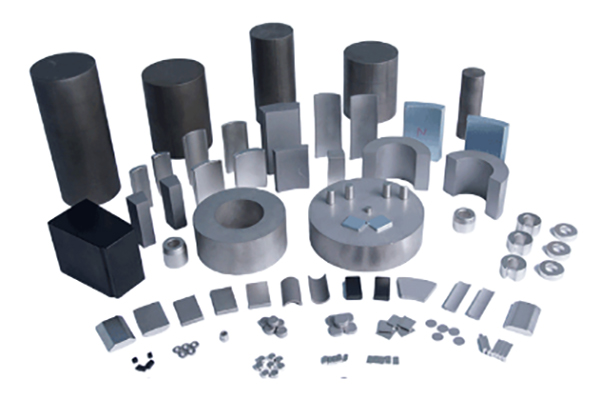

Common designs include:

• Arc magnets;
• Sector magnets;
• Multipole magnetic rings;

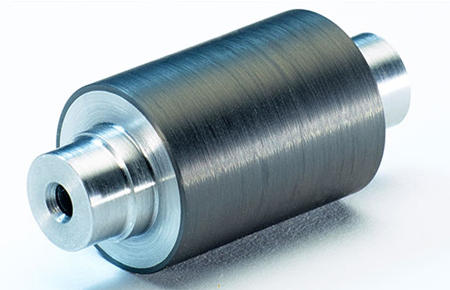

• Rotor magnets;
• Gear-shaped magnets;
• Magnets with holes or slots;
• Thin-wall magnets;
• Integrated magnet-and-bracket structures.

Compared with standard block or cylindrical magnets, material selection for special-shaped magnetic assemblies is more complex. Engineers must consider not only magnetic force, but also operating temperature, demagnetization risk, corrosion resistance, dimensional accuracy, mechanical strength, manufacturing method, production volume, and total cost.

1. Determine the Magnetic Requirements First

Magnetic material should not be selected only according to surface magnetic flux density. Surface flux is influenced by magnet dimensions, measurement distance, air gap, number of poles, magnetization direction, and surrounding ferromagnetic materials.

Two magnets made from the same material can produce very different surface flux readings if their geometries or magnetic circuits are different.

More reliable design parameters include:

• Remanence, Br;
• Intrinsic coercivity, Hcj;
• Normal coercivity, Hcb;
• Maximum energy product, (BH)max;
• Demagnetization curve;
• Recoil permeability;
• Temperature coefficient;
• Permeance coefficient.

Thin, flat, or open-circuit special-shaped magnets may have a relatively low permeance coefficient and can therefore be more vulnerable to self-demagnetization. In these cases, coercivity and the shape of the demagnetization curve are especially important.

For motor rotors, robotic actuators, and similar assemblies, finite element analysis should be used to evaluate air-gap flux density, back electromotive force, torque, torque ripple, local reverse magnetic fields, and temperature distribution.

Selecting the highest magnet grade does not automatically create the best magnetic assembly.

2. Select Materials According to Operating Temperature

As magnet temperature increases, remanence and coercivity generally decrease. If the operating point crosses the knee of the demagnetization curve, irreversible magnetic loss may occur. The original magnetic performance may not recover completely after the magnet cools.

Engineers should distinguish among:

• Ambient temperature;
• Actual magnet temperature;
• Continuous operating temperature;
• Short-term peak temperature;
• Temperature during overload or fault conditions.

Heat generated by motor windings, bearings, eddy currents, and surrounding metal components can cause the magnet temperature to be significantly higher than the ambient temperature.

These are general material characteristics. The actual allowable temperature and magnetic performance must be verified according to the specific grade, dimensions, magnetic circuit, and operating conditions.

3. Complex Shapes Require Suitable Manufacturing Processes

Sintered NdFeB offers very high magnetic performance, but it is a hard and brittle material. Thin walls, sharp corners, deep holes, narrow slots, and high length-to-diameter ratios can increase the risks of chipping, cracking, and dimensional variation.

If a complex shape must be produced entirely through grinding, electrical discharge machining, or wire cutting, material utilization may decrease while machining cost increases.

Injection-molded magnets combine magnetic powder with a thermoplastic resin. They can be formed into thin-wall, gear-shaped, multipole, or insert-integrated structures in a single molding operation.

Important advantages include:

• High shape freedom;
• Good dimensional accuracy;
• Stable production consistency;
• Reduced secondary machining;
• The ability to mold around shafts or inserts;
• Suitability for high-volume production;
• Flexible multipole magnetization.

JLMAG Innovation’s injection-molded magnets are designed for applications requiring complex geometry, dimensional consistency, and component integration.

However, the polymer binder reduces the volume fraction of magnetic powder. Injection-molded magnets therefore generally have a lower energy product than sintered magnets. Material selection must balance magnetic performance against structural integration and manufacturing efficiency.

4. Mechanical Loads Determine the Assembly Method

Most permanent magnet materials have relatively good compressive strength but limited tensile, bending, and impact resistance. They should not be treated as conventional structural metals.

Magnets in high-speed rotors may experience:

• Centrifugal force;
• Thermal stress;
• Electromagnetic force;
• Vibration;
• Repeated acceleration and deceleration;
• Shock loads during assembly or operation.

Common fixing methods include:

• Structural adhesive bonding;
• Stainless-steel sleeves;
• Carbon-fiber retaining sleeves;
• Interference fitting;
• Grooves and mechanical locking;
• Injection overmolding;
• Insert molding.

The adhesive must be compatible with both the magnet coating and the substrate. Its shear strength, operating temperature, humidity resistance, oil resistance, curing conditions, and long-term aging performance should be verified.

For high-speed rotors, mechanical stress analysis and overspeed testing should be conducted using an appropriate safety factor. Adhesive strength alone should not be assumed to guarantee rotor safety.

5. Environmental Conditions Determine Coating Requirements

The rare-earth-rich grain-boundary phases in sintered NdFeB are chemically active. In humid, salt-spray, condensation, or chemically aggressive environments, unprotected magnets may corrode.

Common protection systems include:

• Nickel-copper-nickel plating;
• Electrophoretic epoxy coating;
• Zinc plating;
• Phosphating;
• Parylene coating;
• Composite protective coatings.

A coating should not be selected only according to appearance. If the component is adhesively bonded, the coating must provide suitable adhesion. If it is press-fitted, coating thickness, friction, and edge damage must be considered.

For exposure to salt spray, coolant, oil, cleaning agents, or chemicals, application-specific environmental testing is necessary.

SmCo, ferrite, and SmFeN powder have different corrosion characteristics from sintered NdFeB. Nevertheless, shafts, steel housings, adhesive layers, and interfaces may still become failure points. Corrosion resistance should therefore be evaluated for the entire assembly rather than only for the magnet.

6. Material Selection Process for Special-Shaped Assemblies

7. The Material Must Serve the Entire Magnetic Assembly

If the application requires very high magnetic energy within a limited volume, sintered NdFeB is usually the first material to evaluate.

If the assembly operates at a high temperature and requires stable magnetic performance, SmCo may be more suitable. If the geometry is complex, dimensional accuracy is important, and production volume is high, injection-molded NdFeB or SmFeN may provide greater manufacturing advantages.

For cost-sensitive applications with sufficient installation space, ferrite is often the more economical option. For high-temperature instruments and certain sensing applications, AlNiCo may also be considered.

JLMAG Innovation offers sintered NdFeB, injection-molded magnets, compression-molded magnets, SmFeN, SmCo, ferrite, AlNiCo, and different categories of magnetic assemblies.

For a special-shaped magnetic assembly project, the recommended process is to begin with the application conditions and magnetic circuit objectives. Engineers can then determine the appropriate material, grade, geometry, coating, magnetization direction, and assembly method.

Only by considering magnetic design and structural manufacturing together can a suitable balance be achieved among magnetic performance, reliability, manufacturability, and cost.

The post How to Select Magnetic Materials for Special-Shaped Magnetic Assemblies appeared first on JLMAG INNOVATION CO.,LTD..

On the other hand, rare earth mining, separation, metal refining, alloy preparation, sintering, mechanical processing, coating, and transportation all consume energy and generate emissions.

Carbon neutrality is therefore not only creating market opportunities for permanent magnet manufacturers. It is also changing material design, production processes, supply chain management, environmental reporting, and recycling responsibilities.

1. Clean Energy Technologies Are Increasing Magnet Demand

Permanent magnet motors offer several important advantages, including high efficiency, high power density, compact dimensions, and rapid control response. High-performance NdFeB magnets are therefore widely used in:

• Electric vehicle traction motors;
• Wind power generators;
• Variable-frequency compressors;
• Industrial servo motors;
• Humanoid robots;
• Automated manufacturing equipment;
• Energy-efficient elevators;
• Household appliances.

The International Energy Agency reports that demand for magnet rare earth elements has doubled since 2015. Under current policy settings, it is expected to increase by approximately another third by 2030, mainly because of continued electrification and the deployment of electric vehicles, wind turbines, and other clean-energy technologies.

For permanent magnet manufacturers, this growth will increase demand for magnets with high energy products, high coercivity, low magnetic loss, and reliable long-term performance.

Customers are also moving beyond comparisons based only on the price of an individual magnet. They increasingly evaluate whether a magnet can reduce motor size, improve efficiency, increase power density, and lower energy consumption throughout the product’s operating life.

2. More Stringent Carbon Footprint Management

Although permanent magnets can improve energy efficiency in downstream equipment, their manufacturing process also has a carbon footprint.

Important sources of emissions include:

• Rare earth mining and mineral processing;
• Rare earth separation and purification;
• Metal production and alloy preparation;
• Vacuum melting;
• Strip casting or alloy flake production;
• Hydrogen decrepitation and jet milling;
• Magnetic-field orientation and pressing;
• Vacuum sintering and heat treatment;
• Grinding and surface treatment;
• Wastewater and waste-gas treatment;
• Raw material and product transportation.

As carbon neutrality policies develop, downstream automotive, wind power, robotics, and industrial equipment manufacturers may ask suppliers to provide more detailed information about energy consumption, recycled material content, and product carbon footprints.

Magnet manufacturers must therefore expand their management systems beyond conventional quality control. Energy use, greenhouse gas emissions, material traceability, recycling data, and supplier environmental performance are becoming increasingly important.

3. Heavy Rare Earth Reduction and Material Efficiency

Some high-temperature NdFeB grades contain dysprosium or terbium to improve coercivity and resistance to irreversible demagnetization. However, heavy rare earth elements are relatively scarce and have concentrated supply chains.

Under carbon neutrality and resource-efficiency requirements, technologies that reduce heavy rare earth use are becoming more important. One example is grain-boundary diffusion.

Instead of adding a large quantity of heavy rare earth elements throughout the entire alloy, grain-boundary diffusion introduces them mainly around the outer regions of NdFeB grains. This can improve coercivity while reducing total heavy rare earth consumption.

Magnetic circuit optimization is another important strategy. Finite element analysis can help engineers determine whether every region of a magnet requires the same material grade. Segment design, magnetization direction, air-gap control, rotor structure, and thermal management can all influence the required magnet volume and coercivity.

Material efficiency also includes:

• Improving manufacturing yield;
• Recovering grinding sludge and offcuts;
• Reducing machining allowance;
• Extending component service life;
• Preventing corrosion-related failure;
• Avoiding unnecessarily high magnet grades.

The most sustainable magnet is not always the magnet with the highest performance grade. It is the one that meets the actual operating requirements with an appropriate safety margin and efficient material use.

4. Recycling Is Becoming a Supply Chain Requirement

If magnets in end-of-life motors and appliances are shredded together with steel, copper, and plastics, the rare earth content may become diluted and difficult to recover economically.

High-quality recycling requires manufacturers to consider the magnet’s location, fastening method, coating, adhesive, and dismantling route during the product design stage.

The European Union’s Critical Raw Materials Act includes provisions relating to products containing permanent magnets. For certain product categories, relevant information may include magnet composition, recycling-related data, and instructions that enable safe access and removal.

This means future magnetic assemblies may need to be not only secure during operation, but also identifiable, traceable, and recoverable at the end of their service life.

Adhesive selection, mechanical fastening, rotor sleeves, protective coatings, and the integration of magnets into other components can all affect dismantling and recycling efficiency.

5. Main Effects of Carbon Neutrality on the Magnet Industry

6. Carbon Neutrality Does Not Only Mean Market Growth

Carbon neutrality policies may expand the permanent magnet market, but they will also raise technical, environmental, and compliance requirements.

Companies that lack reliable energy data, environmental controls, traceability systems, and recycling capabilities may find it more difficult to enter international automotive, wind power, and high-end industrial supply chains.

At the same time, manufacturers should avoid unnecessary overdesign. If the actual operating temperature, reverse magnetic field, and mechanical load do not require an extremely high-coercivity material, selecting the highest available grade may increase both cost and resource consumption.

A more scientific approach is to evaluate:

• Continuous and peak operating temperatures;
• Reverse magnetic field;
• Magnetic load line;
• Mechanical stress;
• Corrosion environment;
• Expected service life;
• Allowable magnetic performance loss.

The magnet grade and assembly structure can then be selected according to the actual system requirements.

JLMAG Innovation offers sintered NdFeB, injection-molded magnets, compression-molded magnets, SmFeN, SmCo, ferrite, AlNiCo, and different types of magnetic assemblies. Its business also covers motor and scrap magnet recycling.

In the future, competitiveness in the permanent magnet industry will depend not only on the ability to manufacture powerful magnets. It will also depend on whether companies can provide reliable magnetic solutions with lower critical-material consumption, lower manufacturing emissions, greater traceability, and more effective recycling systems.

The post How Do Carbon Neutrality Policies Affect the Permanent Magnet Industry? appeared first on JLMAG INNOVATION CO.,LTD..

However, as magnetic devices become smaller, lighter, more corrosion-resistant, and more structurally complex, manufacturers are looking for additional materials that can complement NdFeB and SmCo magnets.

Samarium-iron-nitrogen, commonly represented by the Sm₂Fe₁₇N₃ phase, has attracted considerable attention. Its magnetic properties originate from the strong magnetocrystalline anisotropy created when samarium-iron intermetallic compounds are nitrogenated.

SmFeN is not a universal replacement for NdFeB. Its value lies in the distinctive balance it offers among magnetic performance, corrosion resistance, complex-shape manufacturing, and rare earth resource diversification.

1. SmFeN Has Attractive Intrinsic Magnetic Properties

The performance of a permanent magnet cannot be assessed only by measuring its surface magnetic flux density. Other essential parameters include:

• Saturation magnetization;
• Remanence, or Br;
• Intrinsic coercivity, or Hcj;
• Magnetocrystalline anisotropy;
• Maximum energy product, or (BH)max;
• Curie temperature;
• Reversible temperature coefficient.

Sm₂Fe₁₇N₃ has relatively high saturation magnetization and strong magnetocrystalline anisotropy. Published research has reported a saturation magnetization of approximately 1.54 T, a high anisotropy field, and a Curie temperature of approximately 476°C.

Strong magnetocrystalline anisotropy creates the potential for high coercivity. Meanwhile, a relatively high Curie temperature provides a foundation for maintaining magnetic order at elevated temperatures.

However, the Curie temperature should not be interpreted as the magnet’s allowable operating temperature. The practical operating limit also depends on coercivity, magnet geometry, external reverse magnetic fields, the binder system, and mechanical construction.

2. Potentially Lower Dependence on Heavy Rare Earth Elements

Some high-temperature NdFeB grades use dysprosium or terbium to improve intrinsic coercivity and resistance to irreversible demagnetization. These heavy rare earth elements are relatively scarce, expensive, and associated with concentrated supply chains.

SmFeN possesses strong intrinsic magnetocrystalline anisotropy. In certain bonded-magnet applications, this property can reduce the need to rely on heavy-rare-earth-enhanced NdFeB solutions.

This does not mean that SmFeN is free from raw material risks. Samarium is still a rare earth element. Its strategic value lies in diversifying the range of rare earth resources used by the magnet industry rather than completely eliminating the use of critical materials.

Greater material diversity can help manufacturers select different solutions for motors, sensors, pumps, and electronic components instead of depending on a single high-performance magnet system.

3. Well Suited to Bonded and Injection-Molded Magnets

An important advantage of SmFeN is that it can be manufactured as fine anisotropic magnetic powder. The powder can be combined with nylon, PPS, or another polymer binder and formed using injection molding or compression molding.

Compared with conventional sintered magnets, injection-molded SmFeN magnets can be manufactured into highly complex shapes, including:

• Thin-wall magnetic rings;
• Multipole rotors;
• Sleeves;
• Gear-shaped magnets;
• Integrated shafts and bushings;
• Magnets with mounting features;
• Small precision magnetic components.

Injection molding can reduce cutting, grinding, and assembly operations. It can also provide good dimensional consistency in high-volume production.

This is particularly valuable for small motors, cooling fans, water pumps, sensors, automotive actuators, and consumer electronic products where compact structures and repeatable multipole magnetization are required.

JLMAG Innovation’s product portfolio includes SmFeN materials, injection-molded magnets, compression-molded magnets, and various magnetic assemblies. This makes it possible to match magnetic powder, binder, orientation method, molding process, and component structure to specific application requirements.

4. Comparison with Common Permanent Magnet Materials

5. Why Is SmFeN Difficult to Sinter Conventionally?

The principal difficulty in developing SmFeN magnets is not a lack of magnetic potential. Instead, the challenge is converting magnetic powder into a dense bulk magnet without damaging the desired magnetic phase.

The Sm₂Fe₁₇N₃ phase is thermally unstable at the temperatures normally required for conventional sintering. Excessive heating can cause nitrogen loss and decomposition of the magnetic phase, resulting in reduced coercivity and overall magnetic performance.

For this reason, SmFeN is more commonly used in bonded magnets. The magnetic powder is mixed with a polymer binder and formed at a temperature significantly below conventional sintering temperatures.

Researchers are also exploring alternative densification methods, including:

• Hot pressing;
• Rapid consolidation;
• Explosive compaction;
• Additive manufacturing;
• Low-temperature pressure-assisted processing;
• Hybrid NdFeB–SmFeN bonded magnets.

These methods aim to increase magnet density without causing severe decomposition of the Sm₂Fe₁₇N₃ phase.

6. Which Applications Are Suitable for SmFeN Magnets?

SmFeN should be considered when an application has one or more of the following requirements:

• A complex component shape;
• Thin walls or small precision features;
• Multipole magnetization;
• Reduced machining and assembly;
• High dimensional consistency;
• Relatively good corrosion resistance;
• Large-volume injection molding;
• Diversification beyond conventional NdFeB materials.

It may be particularly suitable for small motors, automotive auxiliary motors, pump rotors, sensors, cooling systems, office equipment, and compact electronic devices.

However, if an application requires the highest possible energy product, extremely small magnet volume, very high continuous operating temperatures, or exceptionally strong mechanical performance, sintered NdFeB or SmCo may still be the more appropriate choice.

SmFeN is considered a new option for rare earth permanent magnets because it creates a different balance among coercivity, corrosion resistance, forming flexibility, and resource use. As magnetic powder production, orientation molding, binder systems, and low-temperature densification continue to improve, SmFeN is expected to find broader application in miniaturized and highly integrated magnetic assemblies.

The post Why Are Samarium-Iron-Nitrogen Magnets Considered a New Choice for Rare Earth Permanent Magnets? appeared first on JLMAG INNOVATION CO.,LTD..

Permanent magnet recycling is not simply a matter of crushing used magnets and reusing the resulting material. The appropriate recycling process depends on the source of the waste, oxidation level, coating type, chemical composition, and impurity content. Currently, the three most widely discussed routes are physical recycling, hydrometallurgical recycling, and biological recycling.

Which technology is the most feasible? The answer depends on the characteristics of the waste and the intended recycled product.

1. Physical Recycling: Preserving the Material Value of Magnets

Physical recycling generally includes dismantling, demagnetization, crushing, screening, magnetic separation, and hydrogen decrepitation. In a broader sense, it also covers short-loop direct recycling processes that preserve as much of the original alloy composition and microstructure as possible.

Instead of completely separating the rare earth elements from the alloy, direct recycling converts discarded magnets into reusable magnetic powder or feedstock for new magnets.

The main advantages of physical recycling include a relatively short process, limited chemical consumption, and potentially lower energy requirements. It is particularly suitable for clean NdFeB production scrap with a known composition and limited contamination.

However, physical recycling places relatively strict requirements on feedstock quality. Magnets recovered from end-of-life motors, hard disk drives, household appliances, and electronic devices may contain:

• Adhesives;
• Nickel, zinc, or epoxy coatings;
• Steel components;
• Plastic parts;
• Lubricants;
• Magnets of different grades and compositions.

If these materials cannot be separated effectively, the impurities may reduce the remanence, coercivity, mechanical performance, and consistency of the recycled magnet.

Oxidation is another important issue. NdFeB magnetic powder is chemically active. Excessive oxygen can react with the rare-earth-rich grain-boundary phases, reducing the amount of rare earth available for forming an effective microstructure. Powder preparation must therefore be carried out under carefully controlled oxygen and moisture conditions.

There are also safety considerations. Fine NdFeB powder may oxidize rapidly and can present dust or combustion hazards. Proper inert-gas protection, dust collection, temperature control, and explosion-prevention measures are essential.

2. Hydrometallurgical Recycling: A Mature Route for Complex Waste

Hydrometallurgical recycling usually begins with dismantling, demagnetization, crushing, or thermal pretreatment. The waste is then treated with an acidic or alternative leaching solution so that rare earth elements enter the liquid phase.

Neodymium, praseodymium, dysprosium, terbium, samarium, and other elements can subsequently be separated using precipitation, solvent extraction, ion exchange, crystallization, or related purification processes.

Unlike direct recycling, hydrometallurgy does not attempt to preserve the original magnet structure. Its purpose is to convert the waste into purified rare earth salts, oxides, or other compounds that can re-enter the upstream material production chain.

This method is therefore more suitable for:

• Mixed magnet waste;
• Heavily oxidized magnets;
• Grinding sludge and contaminated swarf;
• Magnets with unknown grades;
• End-of-life magnets containing multiple coatings and impurities.

Hydrometallurgical processes can offer high recovery rates, good separation accuracy, and broad feedstock adaptability. Leaching and solvent-extraction technologies also have an established industrial foundation. For these reasons, hydrometallurgy remains one of the most important routes for recovering rare earth elements from complex NdFeB and SmCo magnet waste.

Its disadvantages include relatively high acid and alkali consumption. The process may also generate wastewater, iron-rich residues, salts, and other by-products requiring further treatment. If leaching agents are not recycled and wastewater treatment is poorly managed, the recycling process itself can create additional environmental burdens.

The economic feasibility of hydrometallurgy is strongly influenced by the rare earth concentration in the feedstock. Directly shredding complete appliances or motors without first concentrating the magnets may dilute the rare earth content and make subsequent chemical recovery less economical.

3. Biological Recycling: Promising but Still Developing

Biological recycling, also known as bioleaching or biometallurgy, uses microorganisms, biologically produced acids, or biological adsorption materials to recover metals from magnet waste.

Certain microorganisms produce organic or inorganic acids during metabolism. These substances can dissolve rare earth elements and other metals from pretreated magnetic materials. Biological adsorbents may also be used to capture rare earth ions from low-concentration solutions.

Compared with conventional strong-acid leaching, biological methods may offer several potential advantages:

• Relatively mild operating conditions;
• Lower process temperatures;
• Reduced consumption of concentrated chemical reagents;
• Potentially lower energy consumption;
• The possibility of using renewable biological agents.

However, permanent magnets present several difficulties for biological treatment. NdFeB magnets contain a large proportion of iron, and dissolved iron can interfere with the selective recovery of rare earth elements. High metal concentrations may also inhibit microbial activity.

In addition, biological leaching is generally slower than conventional chemical leaching. Maintaining stable microbial performance in a large industrial reactor can be difficult because temperature, pH, oxygen supply, nutrient conditions, and metal toxicity must all be carefully controlled.

As a result, biological recycling should currently be regarded as a promising complementary technology rather than a complete replacement for established hydrometallurgical processes. It may be particularly useful for low-grade residues, diluted waste streams, or hybrid processes that combine biological leaching with chemical separation.

4. Comparison of the Three Recycling Technologies

5. Which Permanent Magnet Recycling Technology Is More Feasible?

There is no single recycling technology that is optimal for every type of permanent magnet waste.

For clean production scrap, defective magnets, and offcuts with known chemical compositions, physical separation and short-loop direct recycling should generally be evaluated first. These methods can preserve more of the original material value while reducing repeated chemical separation and refining.

For heavily oxidized, contaminated, mixed-grade, or unknown magnet waste, hydrometallurgical recycling is usually more adaptable. It can separate valuable rare earth elements from iron, coatings, and other impurities, although environmental controls and reagent recycling are necessary.

Biological recycling has considerable environmental potential, but its reaction speed, process stability, and industrial scale still require further development. In the near term, it is more likely to complement physical and hydrometallurgical methods than replace them.

The most practical future solution may be a graded recycling system:

1. Dismantle and identify the magnets.
2. Separate them by material, grade, coating, and contamination level.
3. Directly regenerate clean and traceable materials.
4. Apply hydrometallurgy to complex or degraded waste.
5. Use biological or other low-impact processes for suitable low-grade streams.
6. Return recovered materials to magnet production.

JLMAG Innovation’s business covers magnetic materials, magnetic assemblies, motor recycling, and scrap magnet recycling. Connecting magnet design, production, application, dismantling, and recycling can improve material traceability and support a more efficient closed-loop supply chain for permanent magnets.

The post Physical, Hydrometallurgical, or Biological Recycling: Which Permanent Magnet Recycling Technology Is More Feasible? appeared first on JLMAG INNOVATION CO.,LTD..

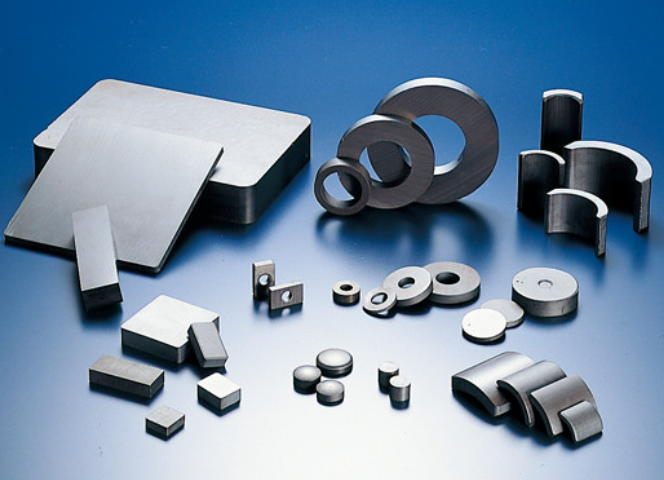

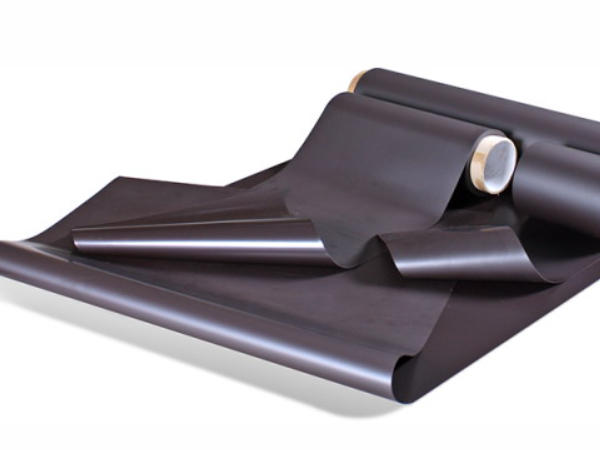

Ferrite magnets have a lower maximum energy product than neodymium-iron-boron magnets. However, they provide an attractive combination of low cost, stable raw material availability, corrosion resistance, high electrical resistivity, and long-term reliability.

For applications where sufficient installation space is available and cost stability is important, ferrite can be an ideal permanent magnet material.

I. Why Can Ferrite Retain Magnetism?

Strontium ferrite and barium ferrite have hexagonal crystal structures with strong magnetocrystalline anisotropy. After magnetization, the magnetic domains tend to remain aligned along preferred crystal directions.

This creates relatively high coercivity, meaning that the material resists demagnetization by external reverse magnetic fields.

Anisotropic ferrite magnets are formed under an applied magnetic field. The field aligns the easy magnetization direction of the ferrite particles before sintering. After sintering and final magnetization, anisotropic ferrite generally provides higher remanence and energy product than isotropic ferrite.

Isotropic ferrite can be magnetized in different directions and may offer greater design flexibility, but its magnetic performance is usually lower.

II. What Are the Main Advantages of Ferrite Permanent Magnets?

1. No Dependence on Rare Earth Elements

Ferrite magnets are mainly produced from iron oxide and strontium or barium compounds. They do not require neodymium, praseodymium, dysprosium, terbium, or cobalt.

This reduces exposure to rare earth price volatility, concentrated supply chains, and geopolitical restrictions. Iron-based raw materials are also widely available and suitable for large-volume production.

2. Competitive Cost for Mass Production

Ferrite provides less magnetic energy per unit volume than rare earth magnets, but its raw material and production costs are generally much lower.

In motors, loudspeakers, magnetic separators, and holding products, designers can sometimes compensate for lower magnetic strength by increasing magnet volume or optimizing the magnetic circuit.

The most economical solution should be evaluated at the system level rather than by comparing magnet strength alone.

3. Good Corrosion Resistance

Ferrite is an oxide ceramic and is already in a chemically stable oxidized condition. Unlike neodymium-iron-boron, it generally does not require nickel, zinc, epoxy, or other protective coatings for use in ordinary environments.

However, the complete assembly still requires evaluation in salt spray, acidic, alkaline, humid, or mechanically aggressive conditions. Adhesives, shafts, steel housings, and other components may corrode even when the ferrite itself remains stable.

4. High Electrical Resistivity

Ferrite has much higher electrical resistivity than metallic permanent magnets. It therefore produces relatively low internal eddy-current loss in alternating magnetic fields.

This property can be useful in electric motors, high-frequency magnetic systems, and applications exposed to rapidly changing fields.

5. Good Long-Term Magnetic Stability

Properly selected ferrite magnets can maintain useful magnetic performance over long operating periods. They are resistant to many forms of environmental degradation and do not depend on a thin protective coating for basic corrosion resistance.

Long-term stability still depends on temperature, external reverse fields, magnet geometry, mechanical stress, and the operating point of the magnetic circuit.

III. How Does Ferrite Compare with Other Permanent Magnets?

Ferrite is not universally the best permanent magnet. It is ideal when cost, availability, corrosion resistance, and production scale are more important than achieving the smallest possible size.

IV. Where Are Ferrite Permanent Magnets Used?

Automotive applications include window motors, cooling fans, seat adjustment systems, pumps, wipers, and other auxiliary drives. Ferrite magnets are also widely used in household appliances, industrial equipment, speakers, and magnetic separation systems.

V. What Are the Limitations of Ferrite Magnets?

1. Lower Magnetic Energy Density

Ferrite has lower remanence and maximum energy product than neodymium-iron-boron. A ferrite-based motor may therefore require larger magnets, a larger rotor, or a more carefully optimized flux-concentration structure.

For humanoid robot joints, drones, miniature medical devices, and other highly compact applications, this additional volume and mass may be unacceptable.

2. Brittle Mechanical Behavior

Ferrite is a ceramic material. It has good compressive strength but relatively poor tensile and impact strength.

Magnets can crack or chip if dropped, struck, or clamped unevenly. Assembly fixtures and adhesive processes should distribute stress carefully.

3. Temperature-Dependent Magnetic Properties

Ferrite remanence and coercivity change with temperature. Its temperature behavior differs from rare earth magnets and must be evaluated using the complete demagnetization curve.

Designers should check both high-temperature and low-temperature operating conditions. Curie temperature must not be confused with the recommended maximum working temperature.

4. Limited Machining Flexibility

Ferrite magnets are generally sintered close to their final shape. Because the material is hard and brittle, machining usually requires diamond tools.

Complex shapes, thin walls, and tight tolerances may increase manufacturing cost and breakage risk.

VI. How Can Ferrite Magnet Performance Be Improved?

Manufacturers can improve magnetic performance by controlling raw material purity, particle size, calcination conditions, magnetic-field orientation, forming pressure, sintering temperature, and grain structure.

Additions such as lanthanum and cobalt may improve the magnetic properties of certain high-performance ferrite grades, although they also increase material cost.

At the product-design level, magnetic performance can be improved by:

• Reducing unnecessary air gaps;
• Increasing the effective flux-path area;
• Using high-permeability return-path materials;
• Optimizing magnet shape and magnetization direction;
• Applying flux-concentration rotor structures;
• Preventing local magnetic saturation;
• Selecting an appropriate operating point.

Conclusion

Ferrite is considered an ideal permanent magnet material not because it provides the highest magnetic strength, but because it offers a balanced combination of affordability, corrosion resistance, raw material availability, high electrical resistivity, and long-term reliability.

It remains especially valuable in mass-produced motors, loudspeakers, automotive auxiliary systems, magnetic separators, and industrial magnetic components.

For applications requiring extreme miniaturization or very high torque density, neodymium-iron-boron or samarium-cobalt may be more appropriate. The best choice should always be based on complete-system size, efficiency, temperature, cost, and reliability rather than magnet strength alone.

The post Why Is Ferrite an Ideal Permanent Magnet Material? appeared first on JLMAG INNOVATION CO.,LTD..

Magnetic field components are used not only to generate motor torque but also to measure position, speed, current, torque, and proximity. High robot performance therefore depends on how effectively the motor magnetic circuit, magnetic sensors, mechanical transmission, and control algorithm work together.

I. What Magnetic Components Are Used in Robots?

These components cannot be designed independently. Leakage flux from the motor may enter the encoder area, while inverter current and power cables may create additional alternating magnetic fields around sensitive sensors.

II. How Do Motors and Sensors Form a Control Loop?

A robotic joint generally uses several nested feedback loops. The current loop is the fastest and regulates electromagnetic torque. The speed loop uses encoder information to control rotational velocity, while the position loop compares the commanded and actual joint angles.

Torque sensors or output-shaft encoders may provide additional feedback about gearbox deformation, backlash, external force, or contact with the environment.

High-precision joints often include one encoder at the motor rotor and another at the output shaft. The motor-side encoder supports commutation and fast motor control. The output encoder measures the actual joint position after the gearbox and can reveal transmission error, torsional deformation, and backlash.

III. What Problems Can Magnetic Interference Cause?

1. Encoder Angle Error

Magnetic encoders calculate angle from field direction or field components. Misalignment, changing air gaps, magnet eccentricity, and motor leakage flux can create offset, nonlinearity, and periodic angle error.

Even when an encoder has high nominal resolution, installation error may limit the true system accuracy.

2. Current and Torque Estimation Error

External magnetic fields, core remanence, temperature drift, and conductor position can shift the zero point of magnetic current sensors.

Because motor torque is often calculated from phase current, a current measurement error can directly become a torque-control error.

3. Local Magnetic Saturation

Flux guides and shielding parts must have sufficient cross-sectional area and saturation capability. If a local region saturates, magnetic flux no longer increases linearly with current.

Saturation may reduce motor torque, distort sensor signals, increase harmonics, and cause unexpected heating.

4. Temperature-Related Drift

Permanent magnet flux, winding resistance, Hall sensitivity, magnetic sensor gain, and soft magnetic permeability all change with temperature.

If temperature effects are ignored, a joint calibrated at room temperature may produce errors after continuous high-load operation.

IV. How Can Motors and Magnetic Sensors Be Efficiently Coordinated?

1. Conduct Joint Electromagnetic Simulation

Motor simulation should evaluate more than torque, efficiency, and back electromotive force. Designers should also calculate leakage fields around encoders, brakes, current sensors, and signal wiring.

Electromagnetic analysis can be combined with thermal, structural, and control models. This helps determine whether sensor errors will increase when the motor becomes hot, the shaft deflects, or the bearing air gap changes.

2. Optimize Magnet and Sensor Placement

The encoder magnet should be accurately centered on the rotating shaft, and the sensor air gap should remain within its specified range.

Where motor leakage is strong, designers can increase separation, add a flux return path, use differential sensing, or install a magnetic shield. Shielding thickness should be calculated because a saturated shield may lose effectiveness.

3. Synchronize Signal Acquisition

Current, position, speed, torque, and temperature data should be sampled with consistent timing. Unsynchronized measurements force the controller to combine states from different moments, reducing dynamic accuracy.

Precise time stamping and deterministic communication are especially important in multi-axis robots.

4. Calibrate the Complete Joint

A motor and encoder may each meet their individual specifications, yet the assembled joint may still show significant error.

Complete joint calibration should include mechanical zero, magnetic offset, eccentricity compensation, torque constant, friction, gearbox transmission error, and temperature drift.

5. Use Sensor Fusion

Combining motor current, dual encoder data, torque sensing, inertial measurement, and temperature information allows the controller to distinguish between actual load changes and sensor errors.

Sensor fusion can also improve fault detection. For example, a disagreement between motor current and measured joint torque may indicate gearbox damage, mechanical blockage, or calibration drift.

V. How Should Magnetic Materials Be Selected?

Rotor magnets should be selected according to torque density, operating temperature, reverse-field resistance, cost, and corrosion conditions. Neodymium-iron-boron provides high magnetic energy, samarium-cobalt offers strong high-temperature stability, and ferrite can be suitable for cost-sensitive designs with sufficient space.

Electrical steel, soft magnetic composites, pure iron, or high-permeability alloys may be used for stators, flux guides, shields, and sensor structures.

A higher-grade magnet does not automatically improve the complete robot. Stronger magnets may increase leakage flux, sensor interference, mechanical attraction, and cost. Material selection must be coordinated with magnetic circuit geometry and control requirements.

Conclusion

Efficient cooperation between robotic magnetic components, motors, and sensors requires a complete chain from magnetic field generation and mechanical output to state measurement and closed-loop control.

Joint simulation, controlled leakage flux, accurate sensor placement, synchronized sampling, dual-encoder feedback, temperature compensation, and complete-system calibration can reduce angle error and torque ripple.

The best robotic joint is not simply the one with the strongest magnet or highest-resolution sensor. It is the one in which magnetic, mechanical, electronic, and control components are designed as one coordinated system.

The post How Robot Magnetic Field Components Work Efficiently with Motors and Sensors appeared first on JLMAG INNOVATION CO.,LTD..

Depending on coercivity, permeability, crystal structure, and magnetic behavior, ferrites can be divided into soft ferrites, hard ferrites, and specialized ferrites with magnetostrictive or sensing properties.

This wide range of properties allows ferrites to be used in inductors, transformers, electromagnetic interference filters, wireless charging systems, permanent magnets, and magnetic sensors.

I. What Are the Main Types of Ferrites?

Soft ferrites are easy to magnetize and demagnetize, making them suitable for magnetic cores. Hard ferrites resist demagnetization and can function as permanent magnets.

The two categories cannot be substituted simply because both are called ferrites.

II. How Are Ferrites Used in Inductors?

When current flows through a coil, it generates a magnetic field. Adding a high-permeability ferrite core concentrates magnetic flux and increases inductance, allowing the component to store magnetic energy or filter electrical signals in a smaller volume.

Ferrite cores are widely used in:

• Power inductors;
• Common-mode chokes;
• Radio-frequency inductors;
• DC-DC converters;
• Switching power supplies;
• Signal filters;
• Energy-storage inductors.

The correct ferrite material depends on frequency, current, temperature, waveform, and air-gap design. A material with very high initial permeability may not be suitable for an inductor carrying a large DC current because it may approach saturation too quickly.

III. Why Are Ferrites Important in Transformers?

Transformer cores repeatedly reverse their magnetization as electrical energy transfers between windings. Core loss is therefore a critical design factor.

Ferrites offer low eddy-current loss because of their high resistivity. This makes them particularly useful in high-frequency transformers, where ordinary bulk metals would generate excessive eddy currents.

Manganese-zinc ferrite is commonly used in power conversion over suitable low-to-medium frequency ranges. Nickel-zinc ferrite is often preferred at higher frequencies because of its higher resistivity.

The exact operating range cannot be determined by material name alone. Core geometry, flux density, temperature, winding structure, and manufacturer-specific material properties must also be considered.

IV. How Do Ferrites Suppress Electromagnetic Interference?

High-speed switching circuits, motor drives, digital systems, and communication equipment generate unwanted high-frequency noise.

Ferrite beads, cable cores, and common-mode chokes create frequency-dependent impedance. Instead of simply reflecting all interference, properly selected lossy ferrite materials absorb part of the high-frequency energy and dissipate it as a small amount of heat.

Noise-suppression performance depends on the complex permeability of the ferrite. Designers should evaluate impedance-versus-frequency curves rather than selecting materials only by their nominal permeability.

Common applications include:

• USB and data cables;
• Automotive wiring harnesses;
• Power input lines;
• Motor drive cables;
• Communication interfaces;
• Industrial control systems.

V. What Role Do Ferrites Play in Wireless Charging?

Wireless charging systems transfer energy through alternating magnetic fields between transmitting and receiving coils. A ferrite sheet or plate behind the coil guides magnetic flux toward the intended coupling area.

This can improve magnetic coupling and reduce the amount of magnetic field entering batteries, metal housings, or nearby electronic components. It may also reduce eddy-current heating in surrounding conductive parts.

Ferrite components used in wireless charging need low magnetic loss, suitable permeability, controlled thickness, and adequate mechanical flexibility. Cracking or large gaps between ferrite sections can change the field distribution and reduce performance.

VI. How Are Ferrites Used in Antennas and Communication Equipment?

Nickel-zinc ferrites are often used in radio-frequency antennas, near-field communication devices, and radio-frequency identification systems.

When antennas are installed near metal surfaces, the metal can distort the magnetic field and reduce communication distance. Ferrite layers help redirect the magnetic field and isolate the antenna from the conductive structure.

Ferrite materials are also used in microwave devices such as isolators, circulators, phase shifters, and absorbers. These applications rely on carefully controlled magnetic resonance and loss characteristics.

VII. How Do Ferrites Work in Magnetic Sensors?

Ferrites can serve as flux concentrators, magnetic cores, sensing elements, or magnetostrictive components.

In an inductive proximity sensor, a ferrite core helps direct the high-frequency coil field toward the active sensing surface. When a metal object approaches, it changes the oscillator conditions and allows the device to detect the target.

Cobalt ferrite is of particular interest for force and stress sensing because of its magnetostrictive behavior. Ferrite nanoparticles are also being studied for gas, humidity, biomedical, and chemical sensing.

Some nanoparticle and biosensor applications remain at the research or specialized-use stage and should not be described as universal replacements for established sensor technologies.

VIII. What Other Fields Use Ferrites?

Hard ferrite magnets are used in loudspeakers, small motors, automotive actuators, magnetic separators, relays, and holding devices.

Soft ferrites are found in power supplies, lighting equipment, telecommunications, household appliances, vehicle electronics, industrial automation, and renewable energy systems.

Ferrite powders may also be incorporated into electromagnetic absorbing materials, polymer composites, coatings, and shielding structures.

Conclusion

Ferrite applications extend far beyond conventional transformer and inductor cores. These materials are used in power conversion, electromagnetic interference suppression, wireless charging, antennas, permanent magnet motors, microwave devices, and magnetic sensors.

Each application requires a different balance of permeability, coercivity, resistivity, saturation flux density, magnetic loss, and temperature stability.

Selecting the correct manganese-zinc, nickel-zinc, strontium, barium, cobalt, or other ferrite material requires a clear understanding of operating frequency, field strength, temperature, mechanical conditions, and the function of the complete magnetic circuit.

The post Applications of Ferrites—from Inductive Components to Magnetic Sensors appeared first on JLMAG INNOVATION CO.,LTD..
