Permanent magnets are widely used in modern industries, electronic devices, renewable energy systems, and medical equipment. Different application scenarios impose diverse requirements on the performance and design of magnets. Therefore, when customizing permanent magnets, it is crucial to define the key technical parameters to ensure the final product is both functional and cost-effective. The following aspects are essential considerations.
- Magnetic Performance Parameters
The primary concern lies in the magnetic properties, including:
- Residual Induction (Br): Represents the magnetic induction retained after removing the external field. A higher Br means stronger magnetic flux, suitable for motors, generators, and other applications requiring strong fields.
- Coercivity (Hc): Indicates the magnet’s resistance to demagnetization. The higher the coercivity, the more stable the magnet remains under external magnetic fields or elevated temperatures.
- Maximum Energy Product (BHmax): Reflects the magnet’s ability to store magnetic energy. A higher BHmax allows for smaller magnet sizes, enabling lightweight and compact designs.
- Environmental Conditions
Magnet performance is strongly affected by the working environment:
- Operating Temperature: Different materials have different thermal stabilities. For example, NdFeB magnets are less stable at high temperatures compared to SmCo magnets. High-temperature applications require materials with higher Curie temperatures.
- Corrosion Resistance: NdFeB magnets are prone to oxidation and often require surface coatings, such as nickel, zinc, or epoxy, to improve durability in humid or corrosive conditions.
- Geometry and Dimensional Tolerance

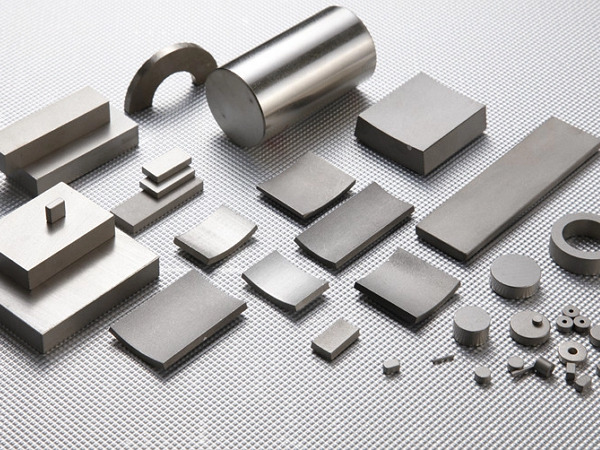

The shape of a magnet defines its magnetic circuit design and assembly method. It is important to specify the exact shape (cylindrical, block, ring, or custom) and dimensional tolerances. Tighter tolerances improve assembly precision but increase manufacturing cost.
- Magnetization Direction
Magnets must be magnetized in a specific orientation during production. Common types include axial, radial, and multipole magnetization. The choice depends on the magnetic field distribution required by the application, such as motors, sensors, or couplings.
- Cost and Manufacturability
Cost-performance balance is critical. For instance, SmCo magnets offer superior thermal stability but are more expensive, while ferrite magnets provide lower magnetic performance but are inexpensive and corrosion-resistant. Choosing the right material requires balancing performance needs with budget constraints.
Conclusion
In summary, customizing permanent magnets requires comprehensive consideration of magnetic properties, environmental adaptability, geometry, magnetization orientation, and cost factors. Only by fully understanding the application requirements and selecting the appropriate material and design can permanent magnets deliver optimal performance and long-term reliability.
